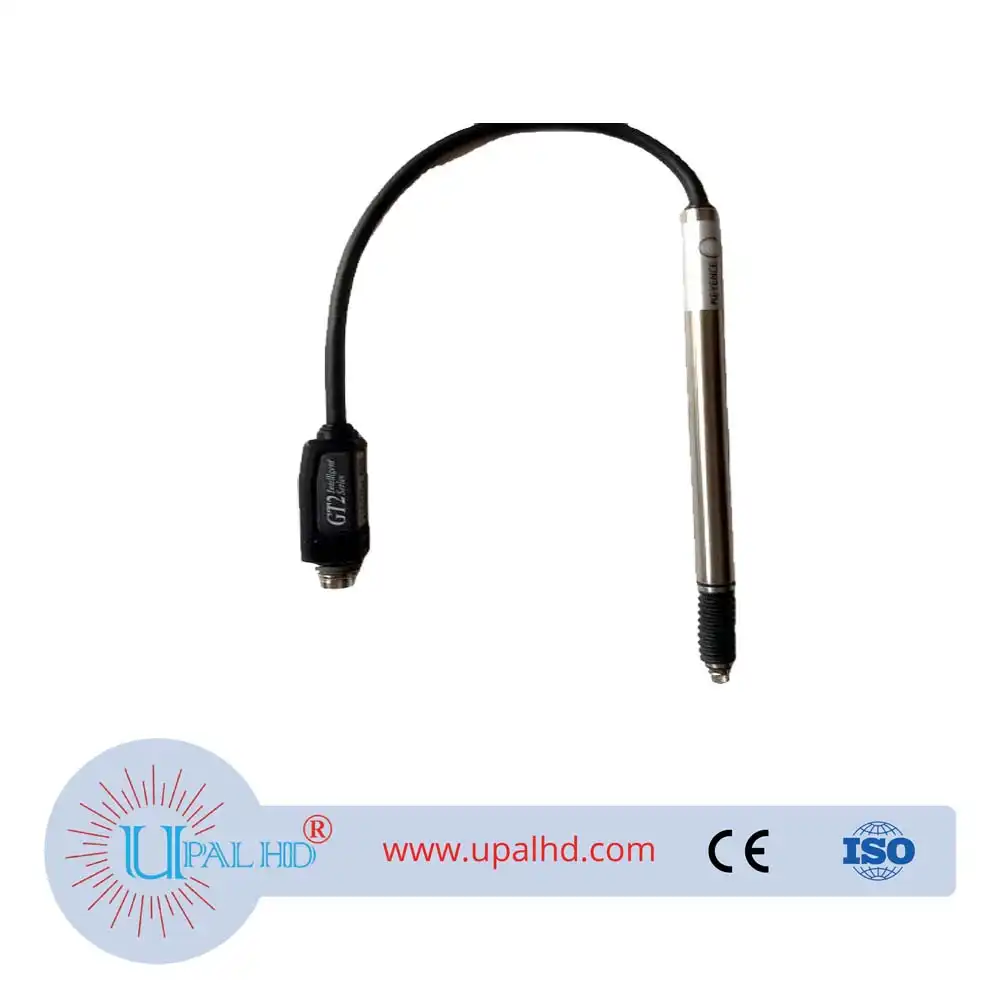

PRODUCT INFORMATION OF Keyence sensor head GT2-P12.
| Model | GT2-P12 | |||
| Detection system | Scale Shot System II, absolute (no tracking errors) type | |||
| Measuring range | 12 mm 0.47″ | |||
| Resolution | 0.5 μm 0.02 Mil | |||
| Indicated accuracy | 2 µm 0.08 Mil (p-p)*2 | |||
| Measuring force | Downward mounting | 1.0 N*3 | ||
| Side mounting | 0.95 N*3 | |||
| Upward mounting | 0.9 N*3 | |||
| Sampling cycle | 4 ms | |||
| Mechanical response | 10 Hz*2 | |||
| Operation indicator light | 2-color LED (red, green) | |||
| Environmental resistance | Enclosure rating | IP67G (JIS)*4, IP67 (IEC), NEMA Type 13*4 | ||
| Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) | |||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
| Shock resistance | 1,000 m/s2 (IEC60068-2-27) | |||
| Materials | Main body | Main body case: SUS 303, Status indicator: PET, Sensor head-relay connector cable: PUR, Relay connector: PBT | ||
| Dust boot | NBR | |||
| Contact | SUS304, SUS440C*5 | |||
| Sensor head cable | Optional (connect to relay connector) | |||
| Weight | Approx. 35 g (excluding cable)*6 | |||
