| Model |

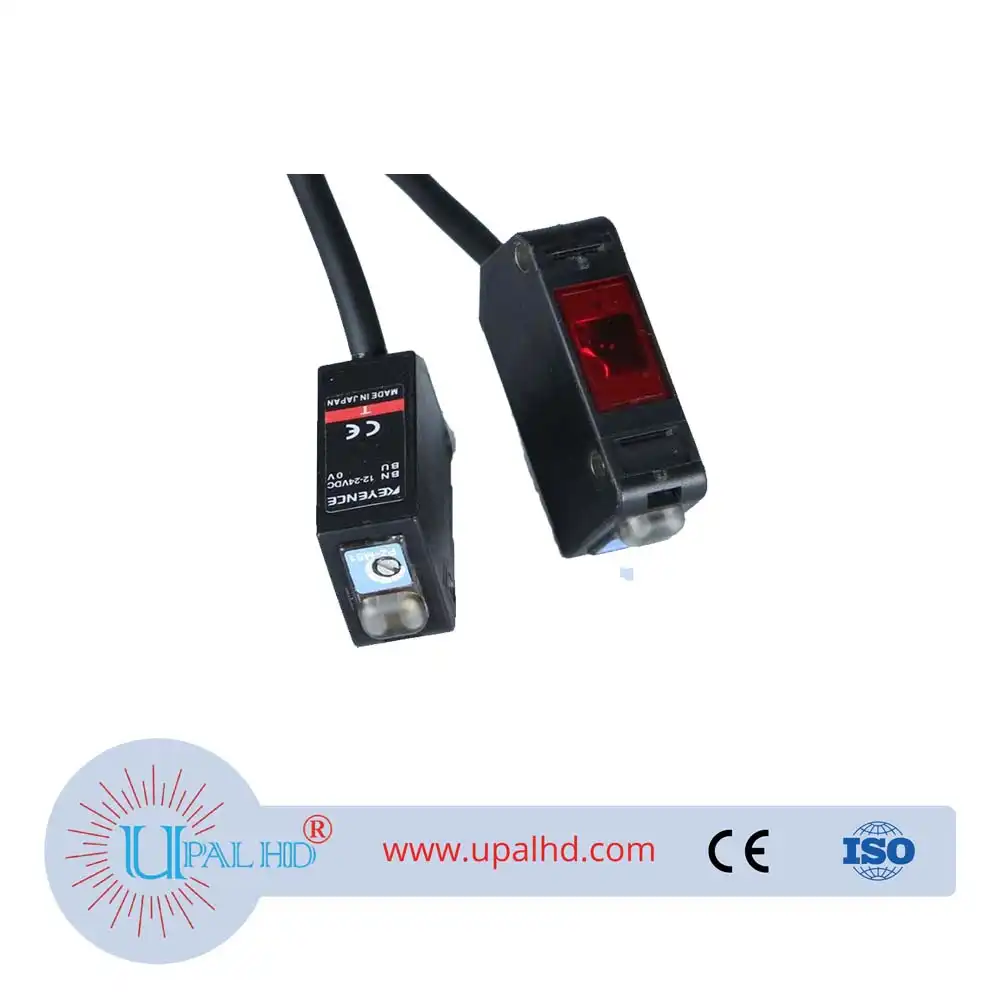

PZ-M51 |
| Type |
Thrubeam |
| Output |
NPN |
| Detecting distance |
10 m 32.8′*1 |
| Setting distance |
― |
| Light source. |
Red LED |
| Sensitivity adjustment |
1-turn trimmer (230°) |
| Response time |
1.5 ms max. |
| Operation mode |
LIGHT-ON/DARK-ON (switch-selectable) |
| Indicator lamp |
Output and power: Orange LED, Stable operation: Green LED*2 |
| Control output |
100 mA (24 V) max., Residual voltage: 1 V max. |
| Digital monitor |
― |
| Protection circuit |
Reversed polarity, overcurrent protection, surge absorber |
| Rating |
Power voltage |
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
| Power consumption |
T: 24 mA max. , R: 27 mA max. |
| Environmental resistance |
Enclosure rating |
IP67 |
| Ambient light |
Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
| Ambient temperature |
-20 to +55 °C -4 to 131 °F (No freezing) |
| Relative humidity |
35 to 85 % RH (No condensation) |
| Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
| Shock resistance |
1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Case material |
Glass-fiber reinforced plastic |
| Accessories |
― |
| Weight |
T: Approx. 50 g, R: Approx. 50 g (including 2-m 6.6‘ cable) |
