Description

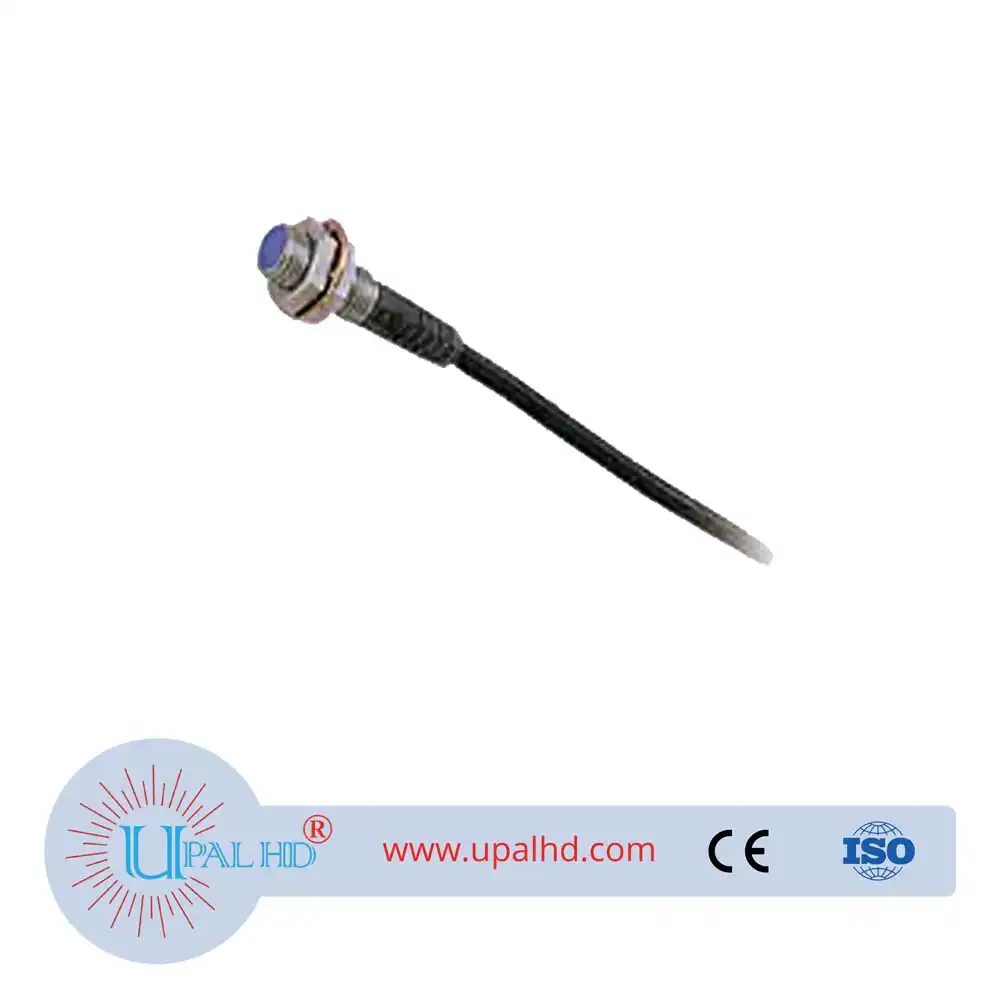

PRODUCT INFORMATION OF Keyence Independent Proximity Sensor EZ-8M.
| Model | EZ-8M | |||
| Type | Shielded | |||
| Shape | M8 | |||
| Detecting distance | 1.5 mm 0.06″ ±10% | |||
| Detectable object | Ferrous metals (see Characteristics for nonferrous metals) | |||
| Standard target (iron, t=1mm 0.04″) |
10 x 10 mm 0.39″ x 0.39″ | |||
| Hysteresis | 10% max. of detecting distance | |||
| Response frequency | 800 Hz | |||
| Operation mode | N.O./N.C. | |||
| Temperature characteristics | ±10% max. of detecting distance at +23°C 73.4°F, within -25 to +70°C -13 to 158°F | |||
| Control output | NPN open collector 100 mA max. (40 V max.), Residual voltage: 1 V max. | |||
| Cable length | 2 m 6.6′ | |||
| Rating | Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less | ||
| Current consumption | 13 mA or less | |||
| Environmental resistance | Enclosure rating | IP67 | ||
| Ambient temperature | -25 to +80 °C -13 to 176 °F (No freezing) | |||
| Relative humidity | 35 to 95 % RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
| Shock resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions | |||
| Case material | SUS303 | |||
| Accessories | Screw nut x 2, toothed washer x 1 |
|||
| Weight | Approx. 50 g | |||
