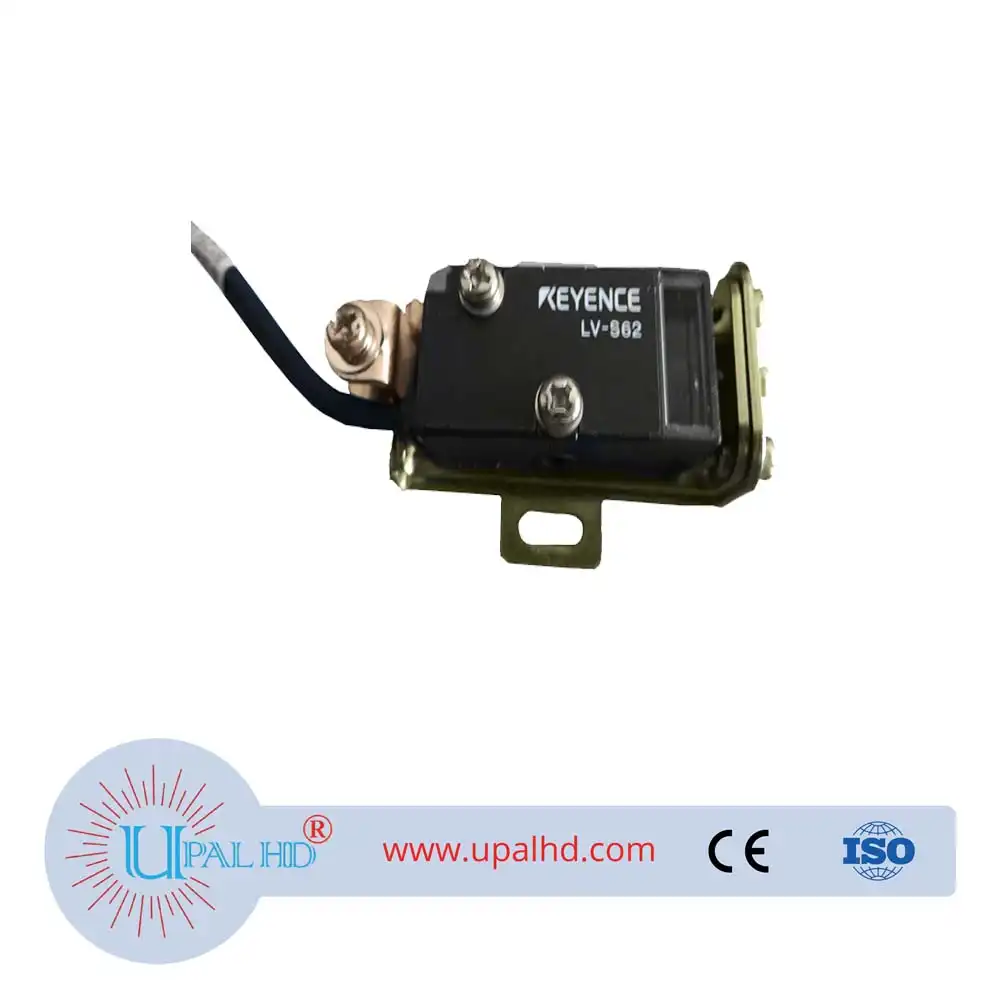

PRODUCT INFORMATION OF Keyence sensor head retro-reflective parallel light LV-S62.
| Model | LV-S62 | |||
| Type | Parallel light area | |||
| FDA (CDRH) Part 1040.10 | Class 1 Laser Product | |||
| IEC 60825-1 | ||||
| Light source | Visible red semiconductor laser, Wavelength: 660 nm | |||
| Detecting distance |
MEGA | 12 m (6 m) 39.4′ (19.7′)*1 | ||
| ULTRA | 10 m (5 m) 32.8′ (16.4′)*1 | |||
| SUPER | 8 m (3.5 m) 26.2′ (11.5′)*1 | |||
| TURBO | 5 m (2 m) 16.4′ (6.6′)*1 | |||
| FINE | 2.5 m (0.7 m) 8.2′ (2.3′)*1 | |||
| HSP | – | |||
| Environmental resistance | Ambient temperature | -10 to +50 °C 14 to 122 °F (No freezing) | ||
| Material | Case | Glass reinforced plastic | ||
| Lens cover | Acrylic | |||
| Reflective mirror | Polycarbonate, acrylic | |||
| Weight | Approx. 65 g | |||
