Description

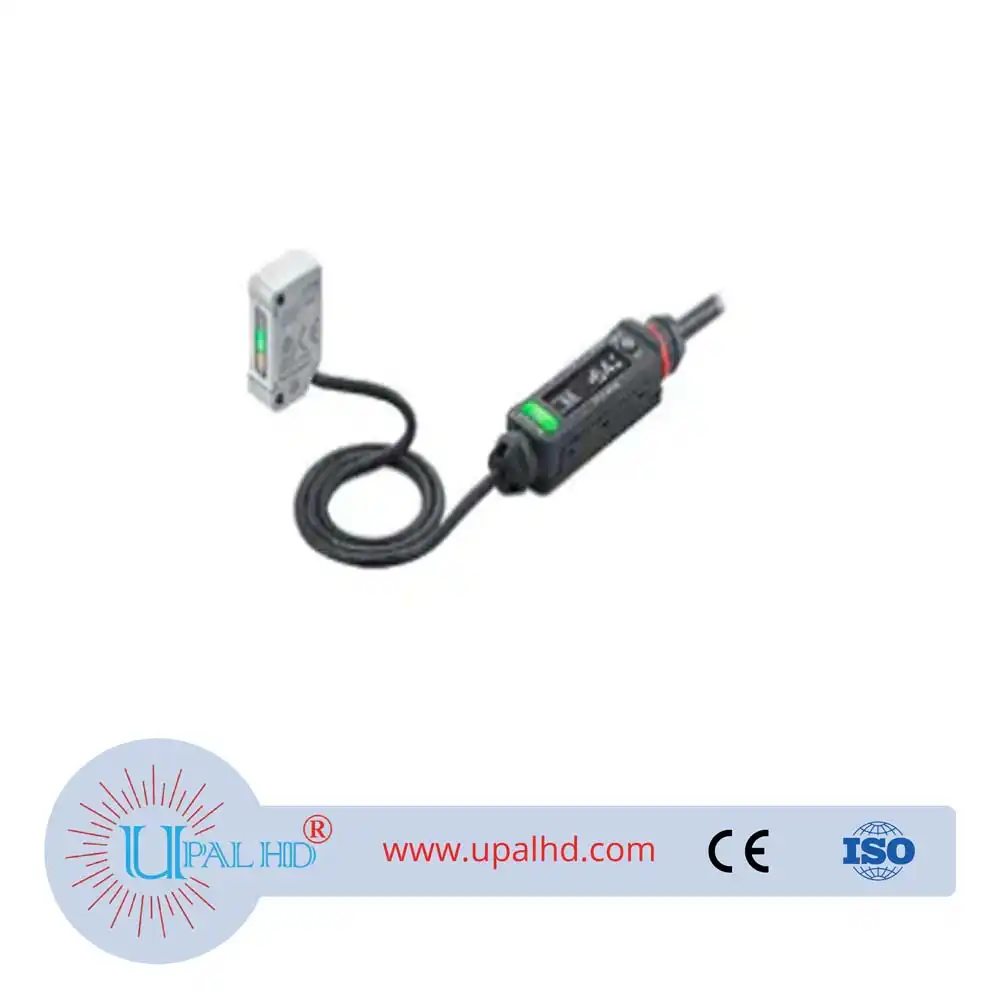

PRODUCT INFORMATION OF Keyence Standard cable type Detection distance 250mm laser sensor LR-X250.
| Model | LR-X250 | |||
| Type | Cable Type | |||
| Detecting Distance | 30 to 250 mm 1.18″ to 9.84″ | |||
| Standard Detectable Deviation | 30 to 180 mm: 9 mm 1.18″ to 7.09″: 0.35″ 180 to 250 mm: 18 mm 7.09″ to 9.84″: 0.71″ |
|||
| Display Resolution | 1 to 2 mm 0.04″ to 0.08″ | |||
| Spot Size | Approx. 0.8 mm × 1.2 mm 0.03″ × 0.05″ (at a detecting distance of 250 mm 9.84″) |
|||
| Response Time | 500 µs*1/1 ms/3 ms/10 ms/200 ms Selectable | |||
| Light Source | Type | Green laser (505 nm) | ||
| Laser Class | Class 1 Laser Product (IEC60825-1, FDA (CDRH), Part1040.10*2) | |||
| IO-Link | Specification v1.1/COM2 (38.4 kbps) | |||
| Functions | Timer Function | Timer OFF/Off-delay/On-delay/One-shot/On-Off delay/On-delay One-shot | ||
| I/O | Control Output | NPN open collector/PNP open collector, N.O./N.C selectable. *3 30 VDC or lower, 50 mA or lower, Residual voltage 2 V or lower |
||
| External Input | External Set/Laser OFF/Zero Shift/Hold Reset/Gyro Alert RST selectable *3 Short circuit current – NPN: 1 mA or lower, PNP: 2 mA or lower Input time 3 ms or more ON, 20 ms or more OFF (25 ms or more ON, 25 ms or more OFF when External Set is selected only) |
|||
| Protection Circuit | Protection against reverse power connection, protection against output overcurrent, protection against output surge, protection against reverse output connection |
|||
| Power supply | Power voltage | 16 to 30 VDC (including 10% ripple (P-P) or less), class 2 | ||
| Power consumption | During normal operation: 970 mW (38 mA or lower at 24 V, 53 mA or lower at 16 V) (Excluding Load Current) ECO ON/ALL: 821 mW (32 mA or lower at 24 V, 44 mA or lower at 16 V) (Excluding Load Current) |
|||
| Environmental resistance | Enclosure rating | IP65/IP67 (IEC60529) | ||
| Ambient light | Incandescent lamp: 8000 lux or less Sunlight: 8000 lux or less |
|||
| Ambient temperature | -10°C to +50°C 14°F to + 122°F (no freezing) | |||
| Relative humidity | 35 to 85% RH (no condensation) | |||
| Vibration resistance | 10 to 500 Hz; Power Spectral Density: 0.816 G2/Hz for X, Y and Z axes | |||
| Shock resistance | 1000 m/s2 (100G) 6 times each for X, Y, and Z axes | |||
| Material | Head Case: SUS316L; Head Lens Cover: PSU Head Gasket: FKM (lens cover), EVM (cable) Cable: PVC Amplifier Case: PBT; Amplifier Display, Indicator: PAR; Amplifier Gasket: NBR; Button: POM |
|||
| Accessories | Instruction manual, laser warning label | |||
| Weight | Approx. 90 g | |||
