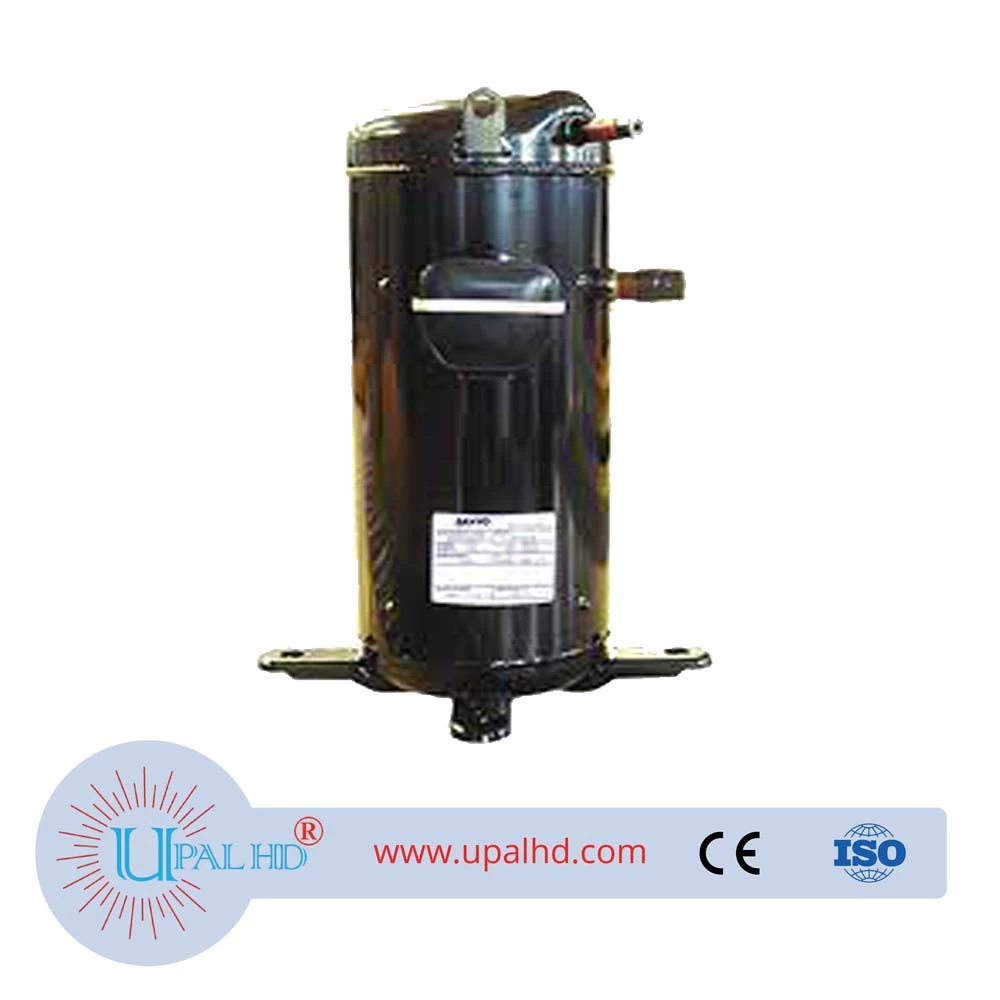

Panasonic 6 C-SB453L8A-R22 low temperature refrigeration compressor
Panasonic 6 C-SB453L8A-R22 low temperature refrigeration Compressor Model Number: C-SB453L8A. Panasonic compressor C-SB453L8A is a 6-hp R22 low-temperature refrigeration scroll compressor produced by Panasonic Compressor (Dalian) Co., Ltd., power supply voltage: 3φ, 380-415V/50Hz, 440-460V/60Hz, displacement is 96.2 (cm3/rev), the cooling capacity at 50Hz is 7.7(kW), the input power is 4.7kW, the cooling capacity at 60Hz is 8.95kW, and the input power is 5.55kW
Description
PRODUCT INFORMATION OF DANFOSS Panasonic 6 C-SB453L8A-R22 low temperature refrigeration compressor
6p Panasonic compressor C-SB453L8A low temperature scroll refrigeration compressor
R22 refrigerant low-temperature model use standard • use limit:
Evaporating Temperature Range (Evaporating Temp): -40～-5℃
Condensing Temperature Range (Condensing Temp.): +30～+63℃
Compression ratio Compression Ratio: MAX below 24
Panasonic Compressor C-SB453L8A Technical Parameter Specification Book Information: cooling capacity, operating current, power, high and low pressure, etc.
Panasonic 6 hp R22 refrigerating compressor C-SB453L8A maintenance and replacement precautions: Refrigerant/fluorine/refrigerant model and charging amount, refrigerating lubricating oil model and adding amount, high and low pressure values, operating current values, suction Exhaust temperature range, etc.
Comparison of performance and parameters between Dalian Panasonic Cryogenic Compressor C-SB453L8A and Copeland Compressor/Danfoss Compressor/Inwalt Compressor/Hitachi Compressor used in the refrigeration field.
