Proface GP4107G1D por-face touch screen

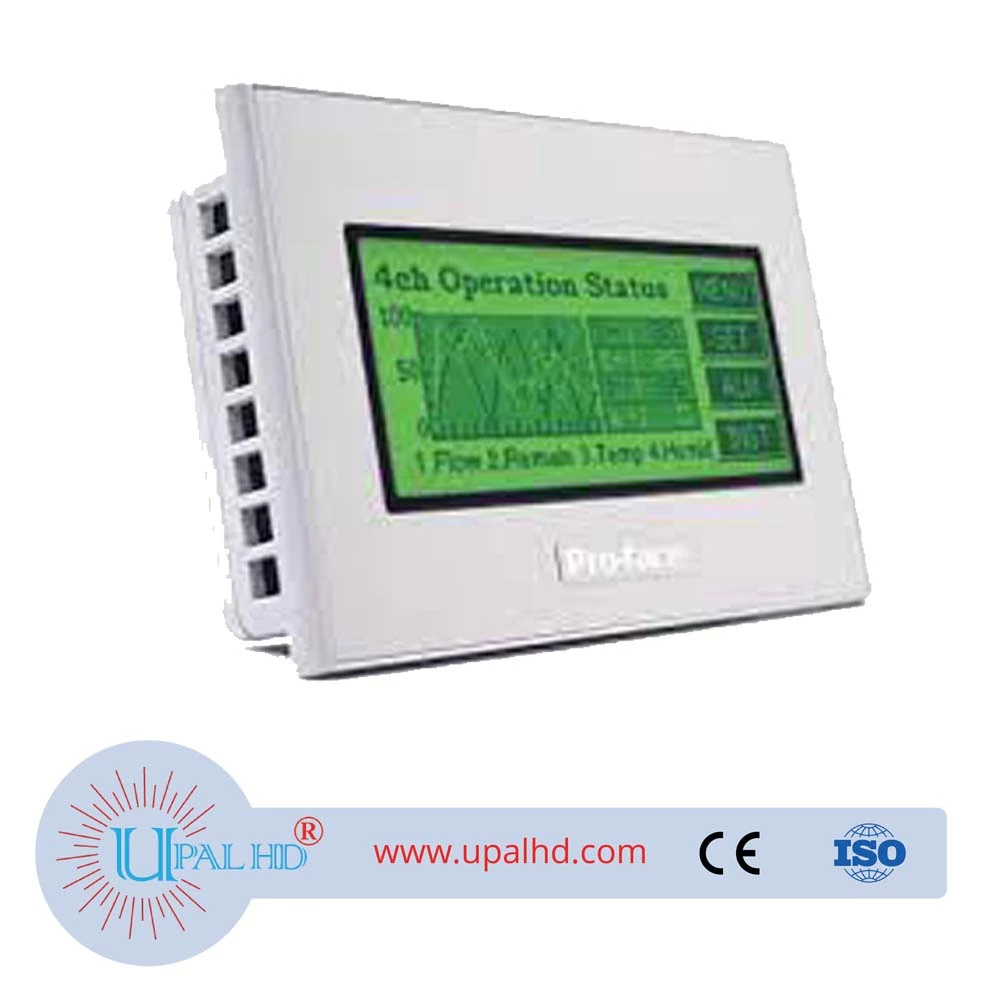

Proface GP4107G1D por-face touch screen Model Number: GP4107G1D. The GP4107G1D HMI is a GP-4100 Series unit from Proface Xycom.  This monochrome HMI is one of several 3.4-inch 200 x 80 units available within our inventory.  Check our GP4000 listings for additional options if this one doesn’t meet all your requirements. The GP4107G1D is a Green/Orange/Red HMI that runs off of DC 24 V input power.   This model is UL and c-UL listed and is suitable for use in Class I, Div 2 Hazardous locations (groups A through D.)  The unit also carries CE Marking and complies with the EMC directive.

The GP4107G1D has a rated voltage of DC 19.2 to 28.8 volts with an allowable voltage drop of 3 ms or less.   When this unit supplies power to USB devices, it has a power consumption of 6.5 watts or less.  However, when it doesn’t need to supply power to outside devices this drops to 3.4 watts or less.   The inrush current on this unit is 30 Amps or less with a voltage endurance rating of AC 1,000 V, 20 mA for 1 minute.
