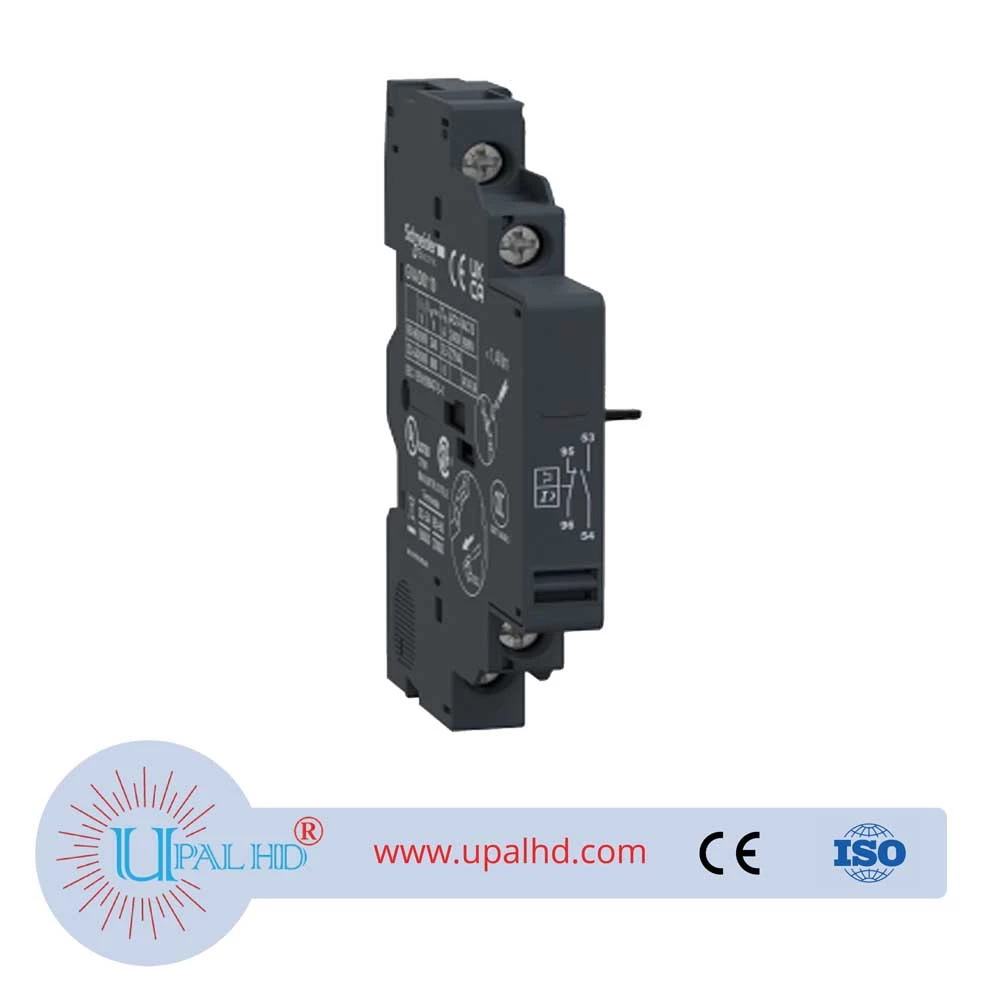

Schneider GVAD0110 motor protector accessories
Schneider GVAD0110 motor protector accessories
Uncategorized Model Number: GVAD0110
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NO instantaneous auxiliary contact.
Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC.
To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals.
Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Description
PRODUCT INFORMATION OF of Schneider GVAD0110 motor protector accessories
| Range of Schneider GVAD0110 motor protector accessories | TeSys TeSys Deca |
|---|---|
| Device short name | GVAD |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2ME GV2L GV3P GV2P GV3L GV2LE GV2RT |
| Mounting location | Left side |
| auxiliary contacts operation | Fault signal 1 NC |
| Pole contact composition | 1 NO + 1 NC |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48…690 V AC 24…240 V DC |
| [Ith] conventional free air thermal current | 6 A 2.5 A for fault signalling |
| protection type of Schneider GVAD0110 motor protector accessories | GB2CB… circuit breaker GG fuse 10 A |
| Mechanical durability | 100000 cycles |
| minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| rated operational power in VA | 300 VA at 48 V AC-15 – electrical durability: 100000 cycles 414 VA at 690 V AC-15 – electrical durability: 100000 cycles 500 VA at 110…127 V AC-15 – electrical durability: 100000 cycles 500 VA at 500 V AC-15 – electrical durability: 100000 cycles 650 VA at 440 V AC-15 – electrical durability: 100000 cycles 720 VA at 230…240 V AC-15 – electrical durability: 100000 cycles 850 VA at 380…415 V AC-15 – electrical durability: 100000 cycles 36 VA at 24 V AC-14 – electrical durability: 1000 cycles 48 VA at 48 V AC-14 – electrical durability: 1000 cycles 72 VA at 110…127 V AC-14 – electrical durability: 1000 cycles |
| rated operational power in W | 120 W at 240 V DC-13 – electrical durability: 100000 cycles 140 W at 110 V DC-13 – electrical durability: 100000 cycles 140 W at 24 V DC-13 – electrical durability: 100000 cycles 180 W at 60 V DC-13 – electrical durability: 100000 cycles 240 W at 48 V DC-13 – electrical durability: 100000 cycles 15 W at 48 V DC-13 – electrical durability: 1000 cycles 24 W at 24 V DC-13 – electrical durability: 1000 cycles 9 W at 60 V DC-13 – electrical durability: 1000 cycles |
| tightening torque | 1.4 N.m – on screw clamp terminals |
| Height of Schneider GVAD0110 motor protector accessories | 89 mm |
| Width of Schneider GVAD0110 motor protector accessories | 9.3 mm |
| Depth of Schneider GVAD0110 motor protector accessories | 66 mm |
| Product weight of Schneider GVAD0110 motor protector accessories | 0.055 kg |
| colour of Schneider GVAD0110 motor protector accessories | Dark grey |
| Environmental characteristic | Normal environment |
| Product certifications | UKCA |
