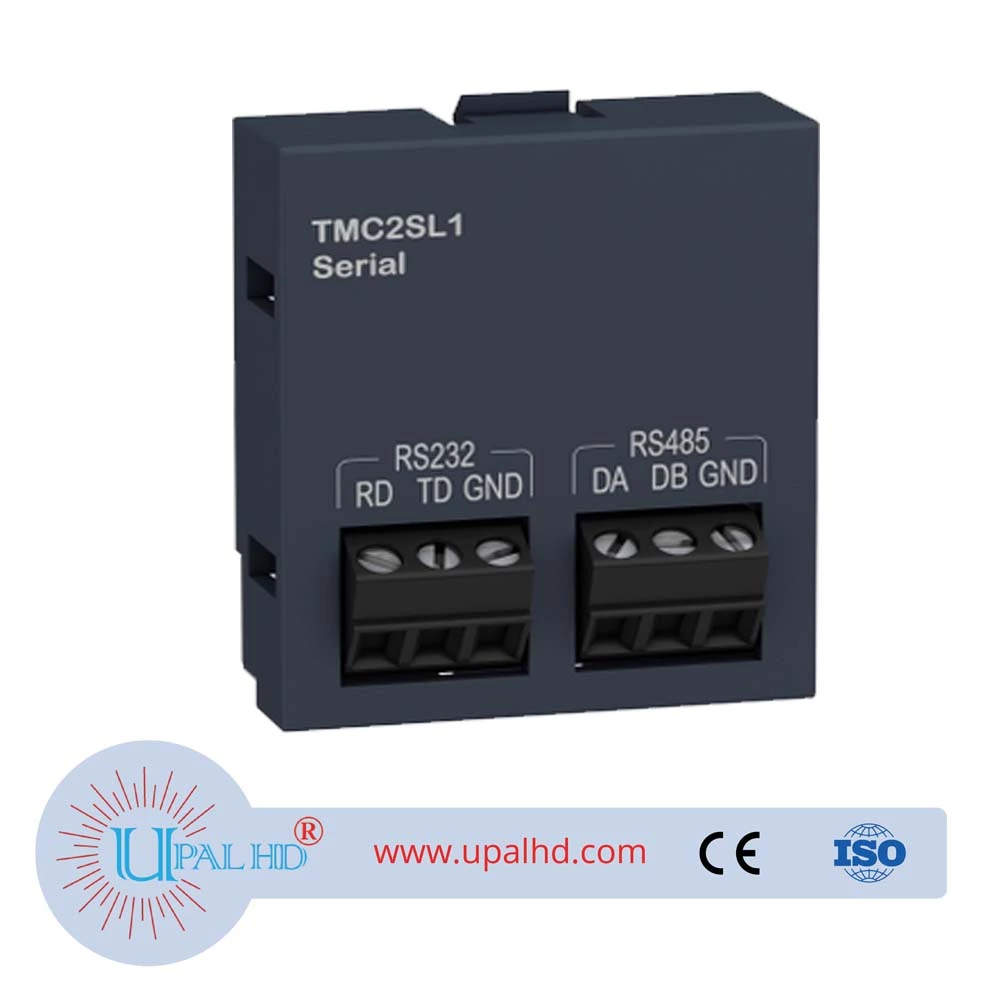

Schneider TMC2SL1
Schneider TMC2SL1 Uncategorized Model Number: TMC2SL1 This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This serial line cartridge is a communication extension which support transmission rate 1.2kbps to 115.2kbps for bus length of 15m for RS485 and 3m for RS232. This product requires minimal installation and offers tremendous versatility. There is no insulation between lines and internal logic. It has non isolated serial link communication port protocols like Modbus master/slave and RTU/ASCII or SoMachine-Network. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Description
PRODUCT INFORMATION OF SCHNEIDER TMC2SL1
| Range of product | Modicon M221 |
|---|---|
| Product or component type | Serial line cartridge |
| Product compatibility | Modicon M221C |
| integrated connection type | Non isolated serial link – screw terminal block for RS232 Non isolated serial link – screw terminal block for RS485 |
| transmission rate | 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 |
| communication port protocol | Non isolated serial link: Modbus master/slave – RTU/ASCII or SoMachine-Network |
| insulation | Non-insulated between lines and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Product weight | 0.015 kg |
