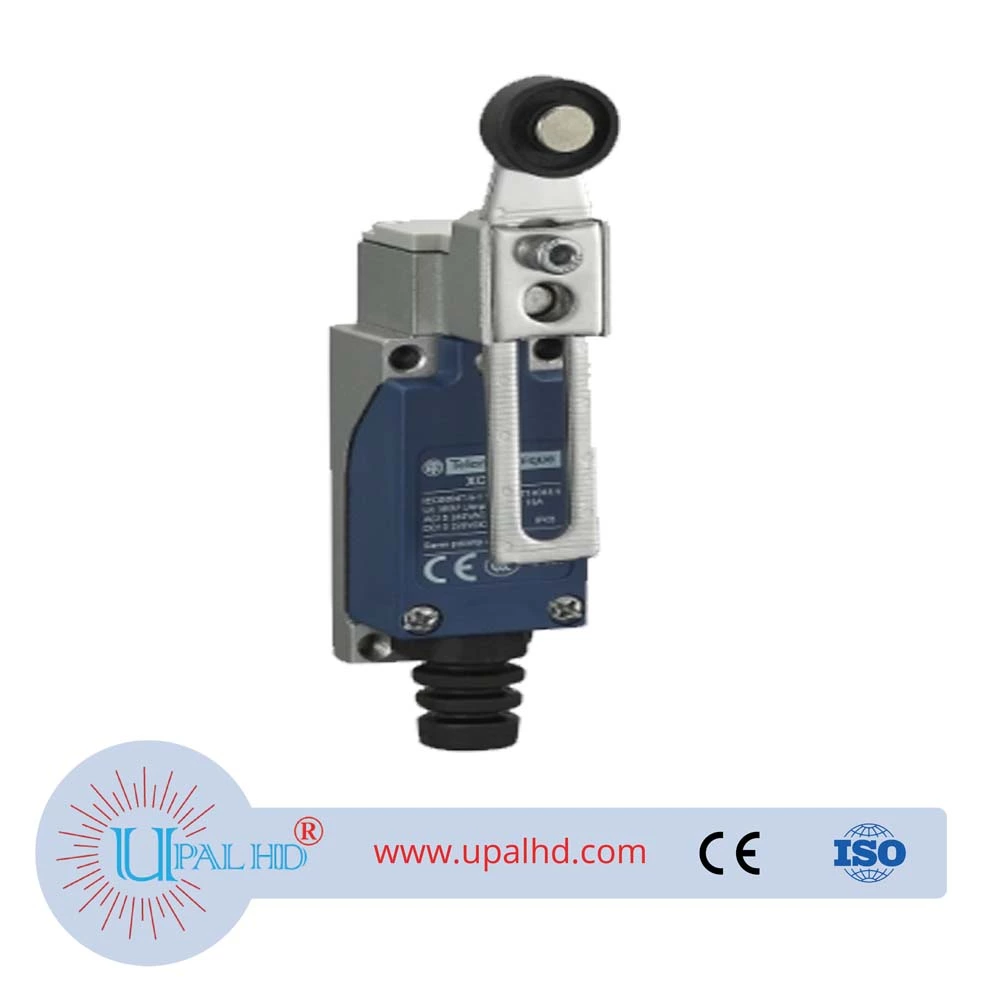

Schneider XCE limit switch XCE145C [length adjustable thermoplastic roller pendulum] 45
Schneider XCE limit switch XCE145C [length adjustable thermoplastic roller pendulum] 45 Uncategorized Model Number: XCE145C This product is part of the XC Special range, an offer of application-specific limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO form Za, snap action contacts. It provides switch actuation by 30° cam. The limit switch has a spring return thermoplastic variable length roller lever and supports the lateral approach. The movement of operating head is rotary. It is a limit switch with a rated operating current of 3A at 240V AC and 0.3A at 220V DC. It is furnished with screw clamp terminals for electrical connection. It is an IP65 rated product. This rotary head limit switch has a fixed body, made of plastic and metal. Its dimensions are 28mm (width) x 48mm (depth) x 125mm (height). It weighs 0.175kg. It is suitable for medium duty applications such as small compactors, wood working, metal working and food processing. It complies with IEC 60947-5-1 and GB 14048.5 standard, with CE and CCC certifications. The operating lever of this switch can be reversed to ease the setting-up. The XCE range of limit switches offers high electrical endurance and high resistance to corrosion for industrial applications. Schneider XCE limit switch XCE145C
Description
PRODUCT INFORMATION OF SCHNEIDER XCE limit switch XCE145C [length adjustable thermoplastic roller pendulum] 45
| Range of product | OsiSense XC |
|---|---|
| Series name | Basic |
| Product or component type | Limit switch |
| Product specific application | Medium duty |
| Device short name | XCE |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic and metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| type of operator | Spring return roller lever thermoplastic variable length |
| Switch actuation | By 30° cam |
| type of approach | Lateral approach, 2 directions |
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 1.5 mm² |
| cable entry | 1 flexible rubber cable gland, cable outer diameter: 6…9 mm |
| Number of poles | 2 |
| Contact operation | Snap action |
| Positive opening | Without |
| Maximum force for tripping | 7.5 N |
| Contacts insulation form | Za |
| Minimum release force | 0.5 N |
| Minimum actuation speed | 9 mm/s |
| maximum actuation speed | 1 m/s |
| Maximum operating rate | 120 cyc/mn |
| contact code designation | A300, AC (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1 |
| maximum resistance across terminals | 25 MOhm |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60664 |
| electrical durability | 800000 cycles, AC, 3 A, 220 V |
| Mechanical durability | 10000000 cycles |
| Width of Schneider XCE limit switch XCE145C | 28 mm |
| Height of Schneider XCE limit switch XCE145C | 125 mm |
| Depth of Schneider XCE limit switch XCE145C | 48 mm |
| Product weight | 0.175 kg |
| Terminals description ISO n°1 | (3-4-1-2)OF |
| shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| vibration resistance | +/- 3 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| electrical shock protection class | Class I conforming to EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Marking of Schneider XCE limit switch XCE145C | CE CCC |
| Standards of Schneider XCE limit switch XCE145C | IEC 60947-5-1 GB 14048.5 |
| Warranty | 18 months |
