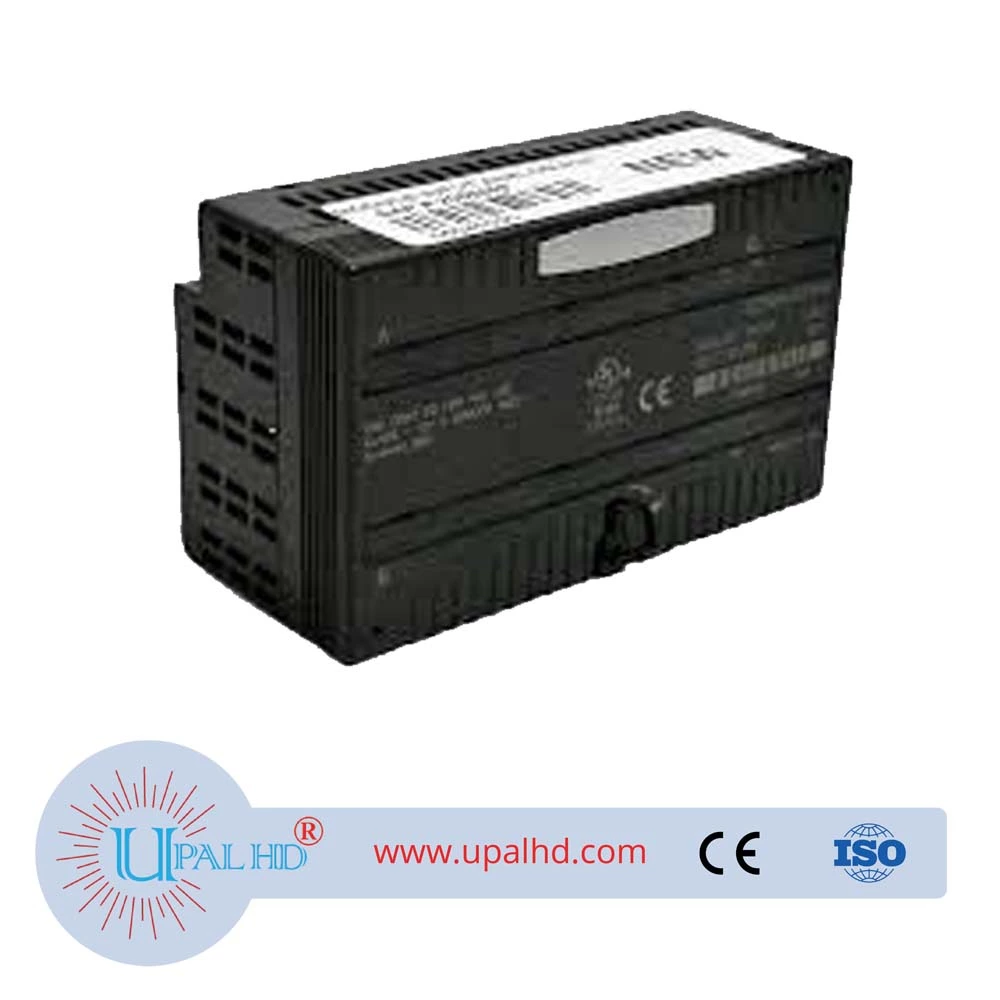

US GE General Electric PLC module IC200ALG260A
US GE General Electric PLC module IC200ALG260A Model Number: IC200ALG260A. The IC200ALG260A is an 8 channel, 12 Bit, Voltage/Current Analog Input Module from the GE Fanuc Versamax series with eight voltage and current inputs. The analog input module has eight isolated inputs as part of an intelligent module that can accept input signals from up to eight separate analog devices. This module also provides input data with 16 bits of resolution for these devices. In current mode, it may be necessary to supply separate power supply for isolated inputs. However, additional software configurable parts include per channel selection of 4-20mA current or +/- 10 V voltage inputs, selectable input filter, and pre-channel selection of default values and under/over range levels.
Description
PRODUCT INFORMATION OF GE FANUC US GE General Electric PLC module IC200ALG260A
| Isolation | 250VAC continuous; 1500VAC for 1 minute |
| Backplane current consumption | 5V output: 125mA maximum. 3.3V output: 125mA |
| Update rate | 60 Hz: approximately 210 ms per channel
50 Hz: approximately 230 ms per channel |
| Normal mode rejection | 60dB, at 50/60 Hz, 100% span |
| Common mode rejection | 120 dB at 50/60Hz, 100-ohm imbalance |
| Common mode voltage | 3V maximum |
| Normal mode voltage | 5V maximum |
| Digital Resolution | 15 bits plus sign |
| Operating temperature range | 0 to 60 Degrees C ambient |
| RTD types | 25, 100, and 1000 ohm platinum
10, 50, and 100-ohm copper 100 and 120-ohm nickel 604 ohms nickel/iron |
| Resistance ranges | 0 to 500 ohms
0 to 3000 ohms |
| Accuracy, at 25° C | +/–0.15% on resistance measurement
+/-0.15% on RTD (temperature) measurement |
| Temperature sensitivity
(0° to 60°C) |
+/–0.004% of reading,
+/–1.5µV per °C referred to the input |
| Maximum lead resistance | 5 ohms per lead |
