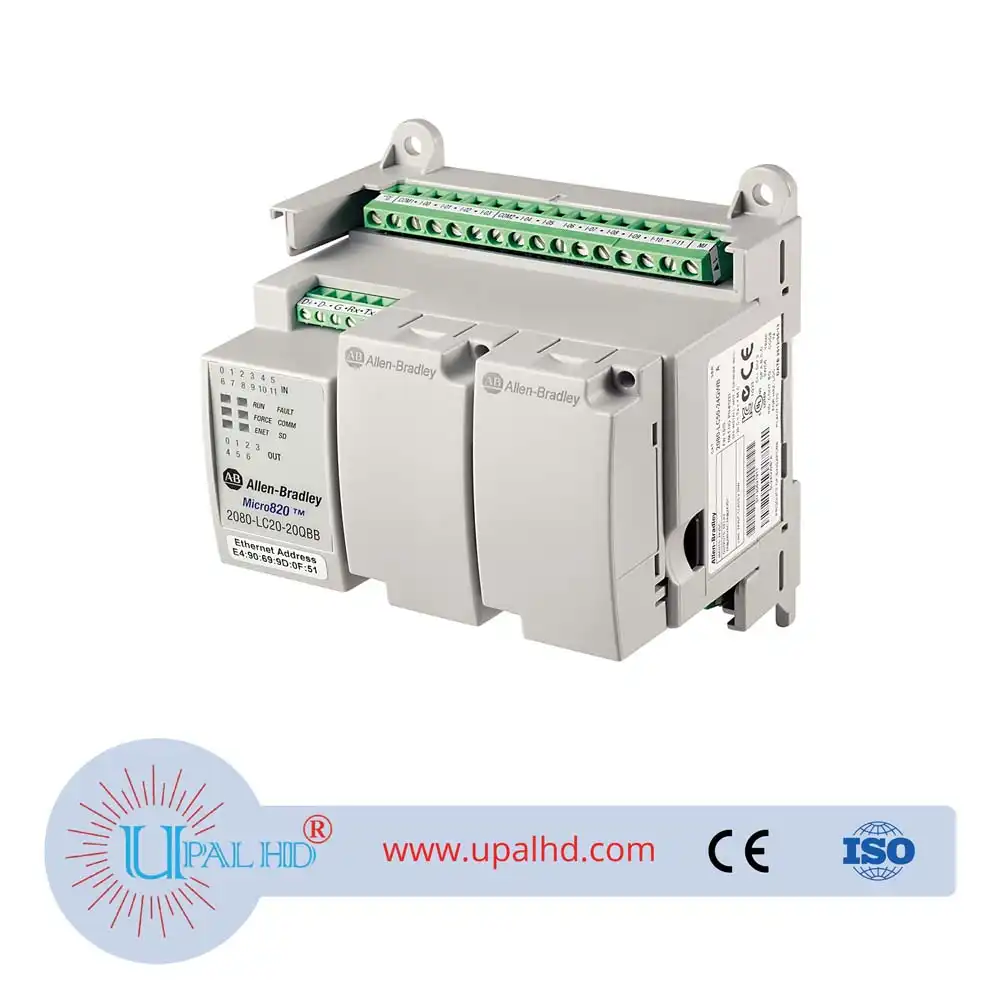

2080-LC20-20QBBR Rockwell AB Micro820 Controller.
2080-LC20-20QBBR Rockwell AB Micro820 Controller. Micro 800 Series Model No: 2080-LC20-20QBBR. Micro820 Controller. 12x 24V DC Inputs. 4 configurable analog input with thermistor voltage reference out. 7 24V DC Source Output. 1 Analog Output. Embedded Ethernet Port and RS-232/485 non-isolated Serial port. Embedded RTC. MicroSD Card support. 2 Plug-in slots, with RTB terminals.
Description
PRODUCT INFORMATION OF 2080-LC20-20QBBR Rockwell AB Micro820 Controller.
| Depth | 80 mm |
| Front installation possible | yes |
| Height | 90 mm |
| Memory size | 20 kByte |
| Model | Compact |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 1 |
| Number of digital inputs | 12 |
| Number of digital outputs | 7 |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of relay outputs | 7 |
| Performance level acc. to EN ISO 13849-1 | None |
| Rack-assembly possible | yes |
| Rail mounting possible | yes |
| SIL according to IEC 61508 | None |
| Supporting protocol for EtherNet/IP | yes |
| Supporting protocol for MODBUS | yes |
| Wall mounting/direct mounting | yes |
| Width | 100 mm |
| With display | yes |
