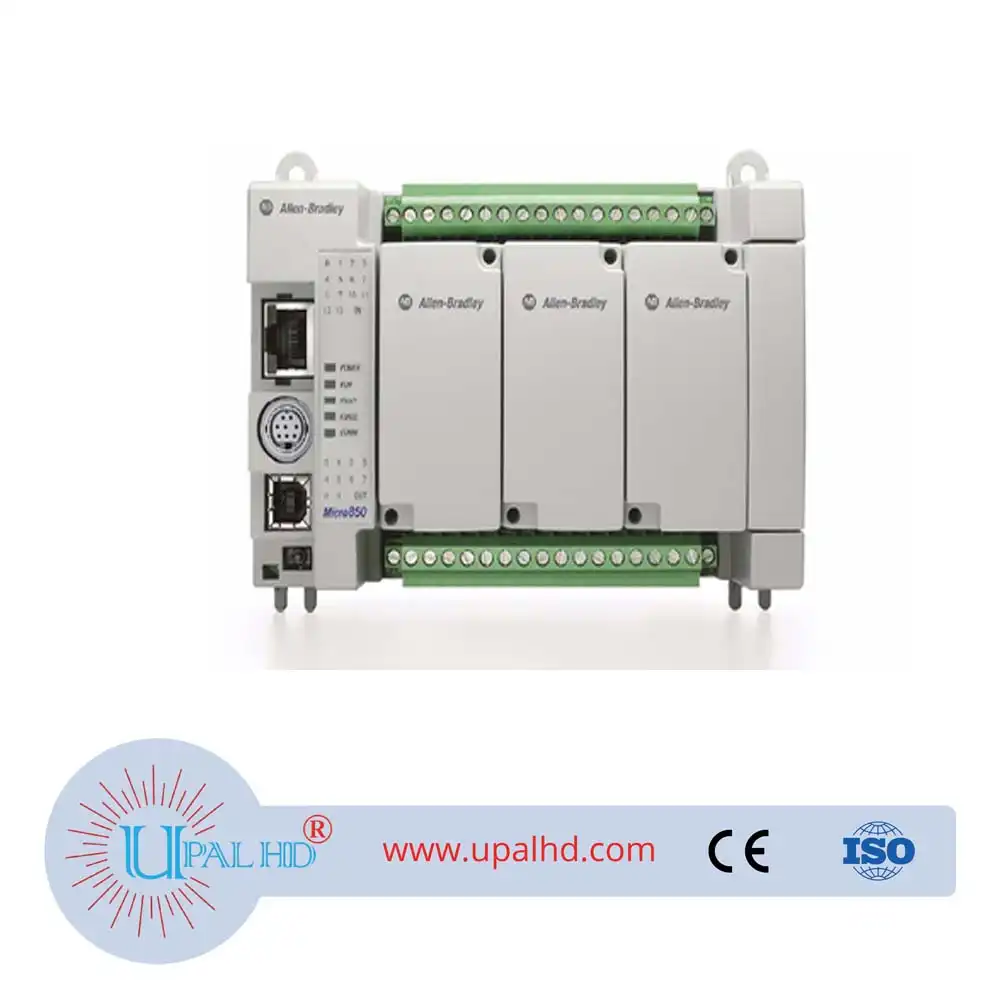

2080-LC50-24AWB American AB new Micro850 controller.
2080-LC50-24AWB American AB new Micro850 controller. Micro 800 Series Model No: 2080-LC50-24AWB. Micro850 EtherNet/IP Controller. 14x 24 VDC/VAC Inputs. 10 Relay Output. 24 DC Input Power. Up to 4 HSC channels. Embedded USB Programming Port. Ethernet Port and Non-Isolated RS232/485 Serial Port. 3 Plug-In Ports.
Description
PRODUCT INFORMATION OF 2080-LC50-24AWB American AB new Micro850 controller.
| Depth | 80 mm |
| Front installation possible | yes |
| Height | 90 mm |
| Memory size | 20 kByte |
| Model | Compact |
| Number of digital inputs | 14 |
| Number of digital outputs | 10 |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of relay outputs | 10 |
| Performance level acc. to EN ISO 13849-1 | None |
| Rack-assembly possible | yes |
| Rail mounting possible | yes |
| SIL according to IEC 61508 | None |
| Supporting protocol for EtherNet/IP | yes |
| Supporting protocol for MODBUS | yes |
| Wall mounting/direct mounting | yes |
| Width | 145 mm |
| With display | yes |
