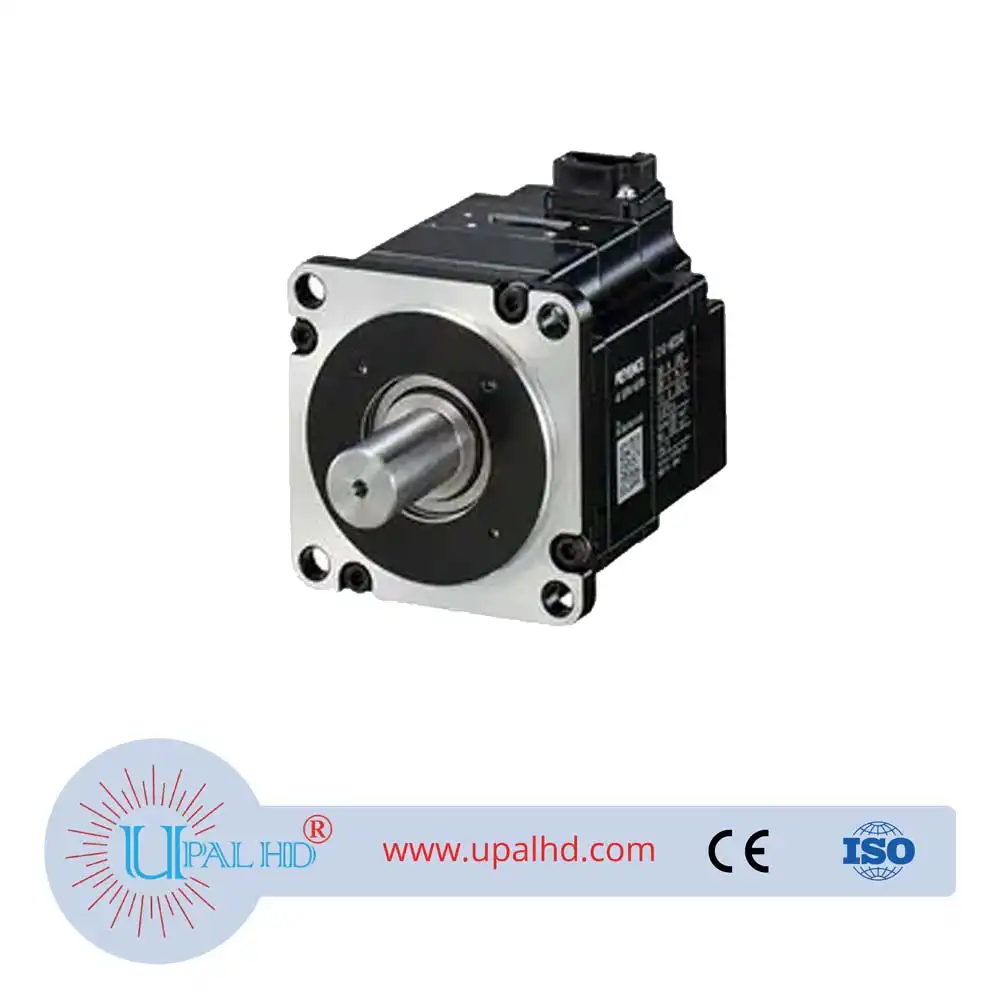

PRODUCT INFORMATION OF Keyence Motor SV-M020AK.
| Model | SV-M020AK | |||
| General specifications | Type | Standard motor, Absolute Type (ABS) | ||
| Applicable servo amplifiers | SV-020** | |||
| Rated output | 200 W | |||
| Rated torque | 0.637 N m | |||
| Instantaneous maximum torque | 2.23 N m | |||
| Rated current | 1.6 Arms | |||
| Instantaneous maximum current | 5.8 Arms | |||
| Rated rotation speed | 3000 min-1 | |||
| Highest rotation speed | 6000 min-1 | |||
| Torque constant | 0.435 N m/Arms | |||
| Rotor moment of inertia | 0.259 ×10-4kg・m2 | |||
| Rated power rate | 15.7 kW/s | |||
| Rated angle acceleration | 24600 rad/s2 | |||
| Excitation method | Permanent magnet | |||
| Allowable load moment of inertia ratio | 15 times | |||
| Resolution | 20bit | |||
| Operating environment | Operating ambient temperature | 0 to +40°C (No freezing) | ||
| Ambient storage temperature | -20 to +60°C (No freezing) | |||
| Ambient operating/storage humidity | 20 to 80%RH (no condensation) | |||
| Vibration resistance | 49 m/s2 with the servo motor flange used as reference surface (3 directions: up/down, right/left, and forward/backward) |
|||
| Shock resistance | 490 m/s2 for two times with the servo motor flange used as reference surface | |||
| Enclosure rating | Totally enclosed, self-cooling, IP65 (excluding connectors and shaft opening) | |||
| Operating environment | Indoors (No corrosive gas, flammable gas, oil mist, or dust) | |||
| Operating environment | Altitude | 1,000 m max. above sea level | ||
| Approved standards | UL/CSA standards | UL1004 C22.2 No.100 | ||
| CE marking | Low-voltage directive | EN60034-1, EN60034-5 | ||
| EMI | EN55011 Class A, EN61800-3 | |||
| EMS | EN61800-3 | |||
| North American EMI standards | FCC Part15 B, ICES-003. Class A | |||
| Insulation class | Class B | |||
| Insulation withstand voltage | 1500 VAC for 1 minute | |||
| Insulation resistance | 10 MΩ min. with 500 VDC megohmmeter | |||
| Weight | Approx 0.9kg | |||
| Note | Rates torque of 50 W to 750 W is the continuous permissible torque values in the following conditions: -Ambient temperature: 40°C -Attached aluminium heatsink: 50 W to 100 W: 200 × 200 × 6 [mm] 200 W to 750 W: 250 × 250 × 6 [mm] Rates torque of 1 kW to 5 kW is the continuous permissible torque values in the following conditions: -Ambient temperature: 40°C -Attached iron heatsink: 1 kW to 2 kW: 400 × 400 × 20 [mm] 3 kW, 5 kW: 550 × 550 × 30 [mm] |
|||
