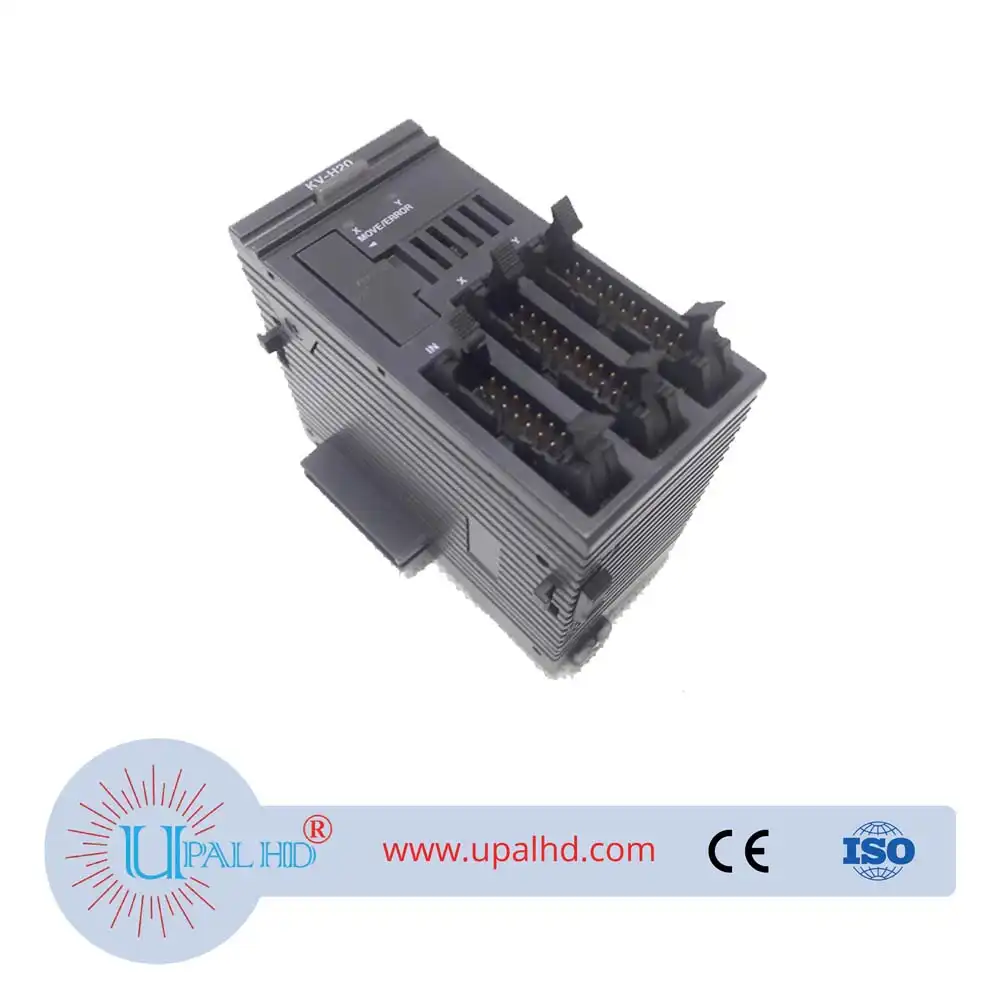

PRODUCT INFORMATION OF Keyence Pulse Train KV-H20.
| Model | KV-H20 | |||
| General specifications | Classification | Positioning and high-speed counter unit | ||
| Power voltage | Main unit side : supplied by the KV-700 CPU unit, I/O side : 24 VDC ±10% | |||
| Operating ambient temperature | 0 to +50°C (no freezing)*1*2 | |||
| Operating ambient humidity | 5 to 85% (no condensation)*1 | |||
| Ambient temperature for storage | -20 to +50°C*1 | |||
| Allowable power flicker time | 2 ms (When in use. In normal situations, this conforms to the CPU unit.) | |||
| Operating environment | Minimal amount of dust and corrosive gas present | |||
| Noise immunity | 1,500 Vp-p, pulse width : 1 µs, 50 ns (by way of a noise simulator) | |||
| Withstand voltage | 1,500 VAC for 1 minute between the power supply terminal and the I/O terminals and between all the external terminals and the case | |||
| Insulation resistance | 50 MΩ or more (tested with a 500 VDC megger, between the PLC power supply terminal and the I/O terminals and between all the external terminals and the case) | |||
| Vibration resistance | Intermittent vibration | Frequency: 10 to 57 Hz | Amplitude : 0.075 mm*3 | |
| Frequency: 57 to 150 Hz | Acceleration : 9.8 m/s2*3 | |||
| Continuous vibration | Frequency: 10 to 57 Hz | Amplitude : 0.035 mm*3 | ||
| Frequency: 57 to 150 Hz | Acceleration : 4.9 m/s2*3 | |||
