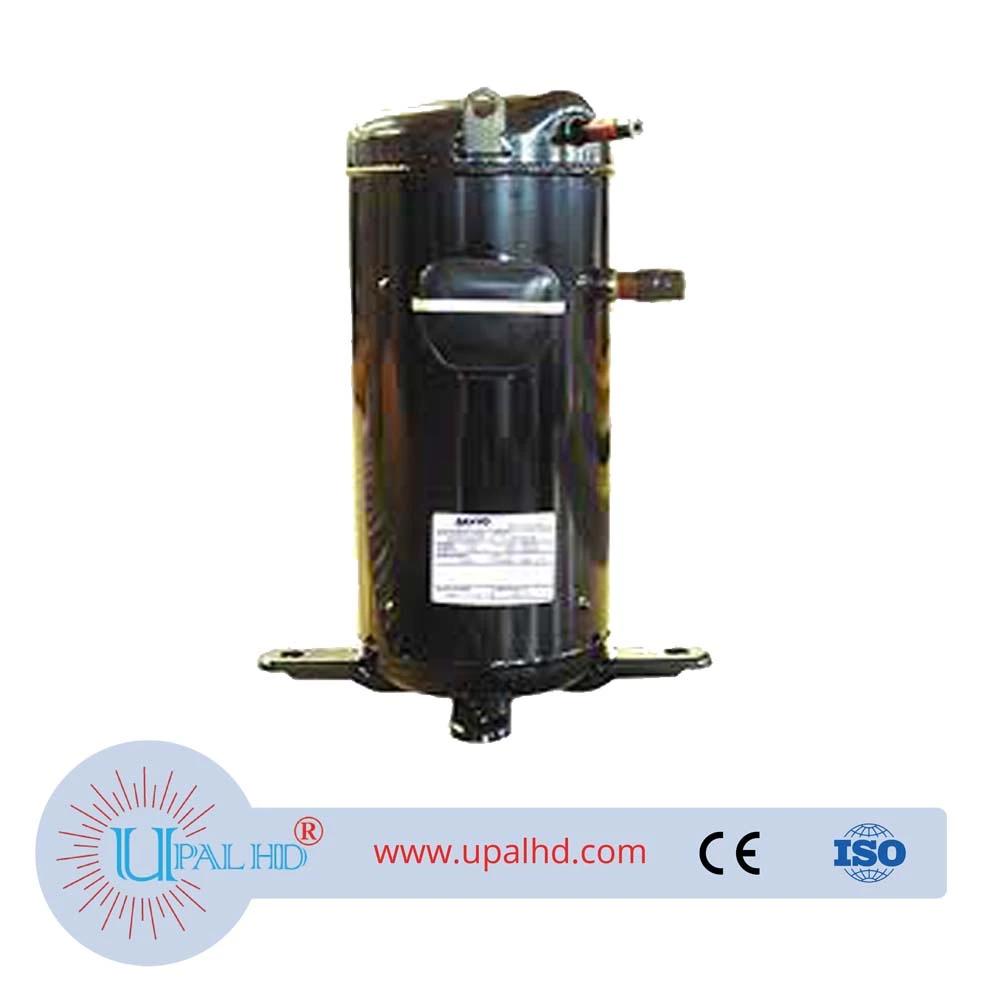

Panasonic 6 hp C-SBR205H38Q heat pump compressor air supply model

Description

PRODUCT INFORMATION OF DANFOSS Panasonic 6 hp C-SBR205H38Q heat pump compressor air supply model

6p Panasonic compressor C-SBR205H38Q gas supply model heat pump compressor R22 refrigerant gas supply model use standard and use limit:

Evaporating Temperature Range (Evaporating Temp): -30～+15℃

Condensing Temperature Range (Condensing Temp.): +20～+68℃

Compression Ratio: 1.5-17

Motor winding temperature Winding Temp: 115°C (below Max.

Panasonic Panasonic Compressor C-SBR205H38Q is a 6HP R22 refrigerant air supplement type heat pump compressor produced by Panasonic Compressor (Dalian) Co., Ltd., displacement 96.2cm3/rev, heating capacity 16900W, input power 5000W, HCOP3.38W /W, current 8.9A.

Panasonic heat pump compressor C-SBR205H38Q technical parameter specifications: heating/cooling capacity, operating current, power, high and low pressure, etc.

Panasonic 6 HP R22 heat pump compressor C-SBR205H38Q Maintenance and replacement precautions: Refrigerant/fluorine/refrigerant model and charging amount, refrigeration lubricating oil model and adding amount, high and low pressure values, operating current values, suction and discharge air temperature range, etc.

Dalian Panasonic Compressor C-SBR205H38Q is used in the field of heat pumps and other similar brands: Copeland Compressor, Danfoss Compressor, Inwalt Compressor, Hitachi Compressor, Highly Compressor, and performance parameter data comparison.

For Panasonic Panasonic C-SBR205H38Q-6HP R22R22 air-supplementing type heat pump compressor more parameters and technical information as well as price and other ordering matters, please call for consultation!
